Non-Adhesive Smart PDLC Film for Glass Lamination
Raw PDLC film for glass laminators and EVA/PVB interlayer processing - supplied in rolls up to 2 m wide and 50 m long, with in-house ITO coating and our patented liquid crystal formula. PNLC (reverse mode - clear when off) available.
The honest numbers
| PDLC film for lamination | Typical local option | Direct from Smart Glass VIP |
|---|---|---|
| ITO coating | Outsourced by most factories | In-house Smartweb roll-to-roll |
| Transmittance (ON) | 75-80% typical | 85-92% by grade, 90% PNLC |
| Max roll width | 1.5 m typical | 2 m for non-adhesive film |
| Defect control | Varies with season | Dust-free, thermostatic workshop |
| Options | Standard PDLC only | PNLC (clear when off) |
| Supply format | Sheets only | Rolls (30 m / 50 m) or cut sheets |
CLEAR · TRANSPARENTBuilt for lamination lines
- In-house ITO coating - quality assured at the source, not outsourced
- Roll widths to 2 m, lengths 30 m or 50 m - fewer joints per panel
- Four grades - Clear 85%, Super Clear 89%, Ultra Clear 92%, Grey
- Dust-free production - no haze or dots appearing in dry, cold weather
- PNLC option - 90% transmittance ON, 92% haze OFF
- Clear-by-default option - PNLC stays clear with no power, frosted on command
- Batch consistency - same LC formula since day one, reorder-safe
The core of every smart glass panel

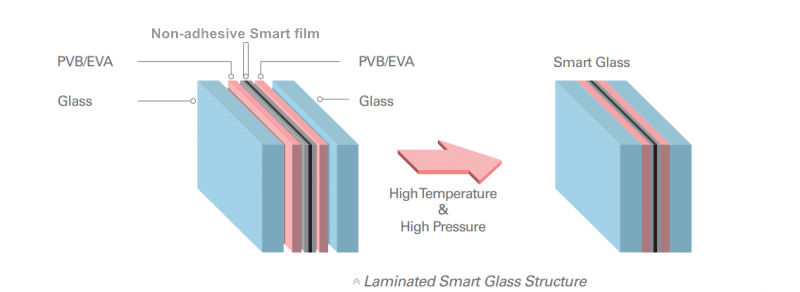

This is the same PDLC core used inside laminated switchable glass. Glass processors sandwich it between glass layers with EVA or PVB interlayer, then wire the finished busbar edge. Our film is produced in a dust-free, thermostatic workshop to prevent the quality problems that only show up months later as haze or black dots.
Technical specifications (SGV non-adhesive PDLC film)
| Working voltage | AC 60V / 48V, 50-60Hz |
|---|---|
| Thickness | 0.4 mm (all grades) |
| Structure | PET / ITO / PDLC / ITO / PET |
| Light transmittance (ON) | Clear 85% · Super Clear 89% · Ultra Clear 92% · Grey 39.6% |
| Haze (OFF) | 93-95% |
| Max width | 2 m (non-adhesive) |
| Roll length | 30 m or 50 m |
| View angle | 160° |
| UV / IR blocking | ≥ 99% / ≥ 98% |
| Operating temperature | -30°C to 70°C |
| Response time | < 10 ms |
| Power consumption | ~5 W/m² |
| Warranty / lifespan | 2 years / ≥ 15 years |

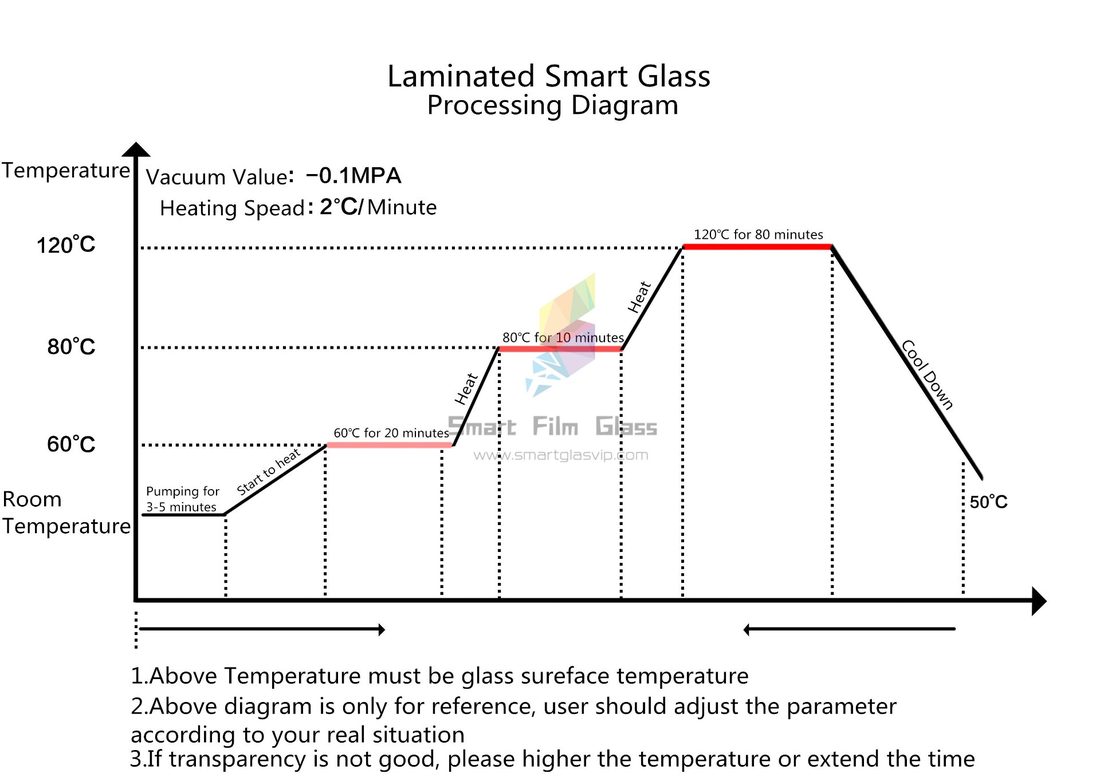

Lamination process
- All temperatures are glass-surface temperatures - measure on the glass, not the oven air
- The diagram is a reference - adjust parameters to your EVA/PVB, glass thickness and autoclave or vacuum-bag setup
- If transparency is poor - raise the temperature or extend the hold time, then re-test with a small sheet
Questions about this product
Do you supply PNLC in rolls?
Yes - PNLC film is available in 1.2 m max width, 0.26 mm thick, with 90% transmittance ON and 92% haze OFF. Contact us for current roll stock.
Can you finish the busbar on lamination film?
Yes. We can supply film with factory-finished busbar edges per your cutting list, so your line only handles lamination and wiring.
What is your minimum order?
One roll for stock grades; custom widths and PNLC from one roll up. Samples for line testing ship worldwide.
Which interlayer works best with your film?
Both EVA and PVB process well. Follow the reference lamination curve on this page, measure temperatures on the glass surface, and run a small test sheet before a full batch.
Can I order film pre-cut to my cutting list?
Yes - send your cutting list and we cut and finish the busbar edges per piece, so your line only laminates and wires. Uncut rolls are cheaper for high volume.
What lamination defects should we watch for?
Bubbles from out-gassing, haze from low temperature or short hold time, and black dots from dust. Our dust-free film and the reference curve on this page prevent most of them - we also review your first-batch results with you.
How is the film packed for shipping?
Rolls are wound on cores, wrapped, and packed in wooden crates with foam for sea or air freight. Each roll is batch-numbered for traceability.
Do you support sample runs for new lamination lines?
Yes - order a short roll or pre-cut sheets, laminate a test batch, and send us photos or a video call. Our engineers help you dial in temperature and pressure.
Two ways to buy our smart film

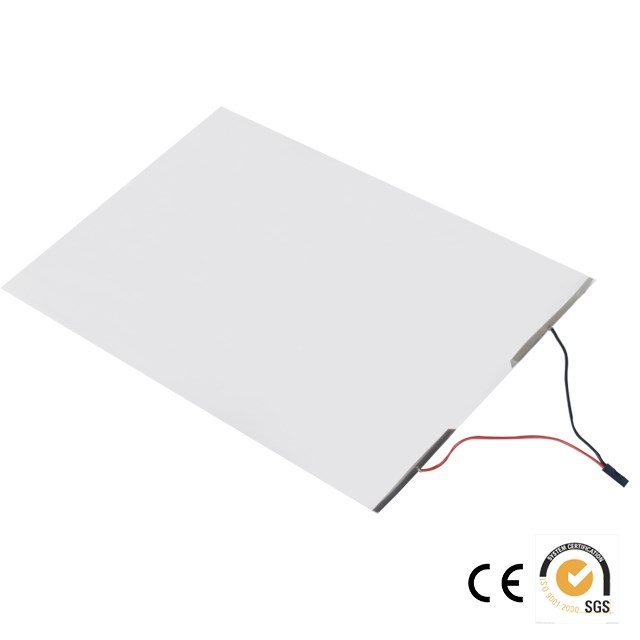

Smart film in sheet - finished
Pre-cut to your exact measurements, with busbars and lead wires factory-finished before shipping. Unpack, mount, connect a power transformer and test it straight away - a finished product, ideal for beginners and end users.
Smart film in roll - semi-finished
Supplied as raw roll without busbars. You cut to size and finish the busbars yourself - lower cost per square meter and maximum flexibility in sizing, which is why large buyers prefer it. It requires cutting and busbar-making skills; we provide full guidance for quantity customers.
Which one should I choose?
Buying one piece or a few windows? Take sheets - ready to use out of the box. Buying 100+ m² or feeding a production line? Rolls cut your material cost and we train your team on busbar work. Not sure? Tell us your quantity and we will quote both ways.

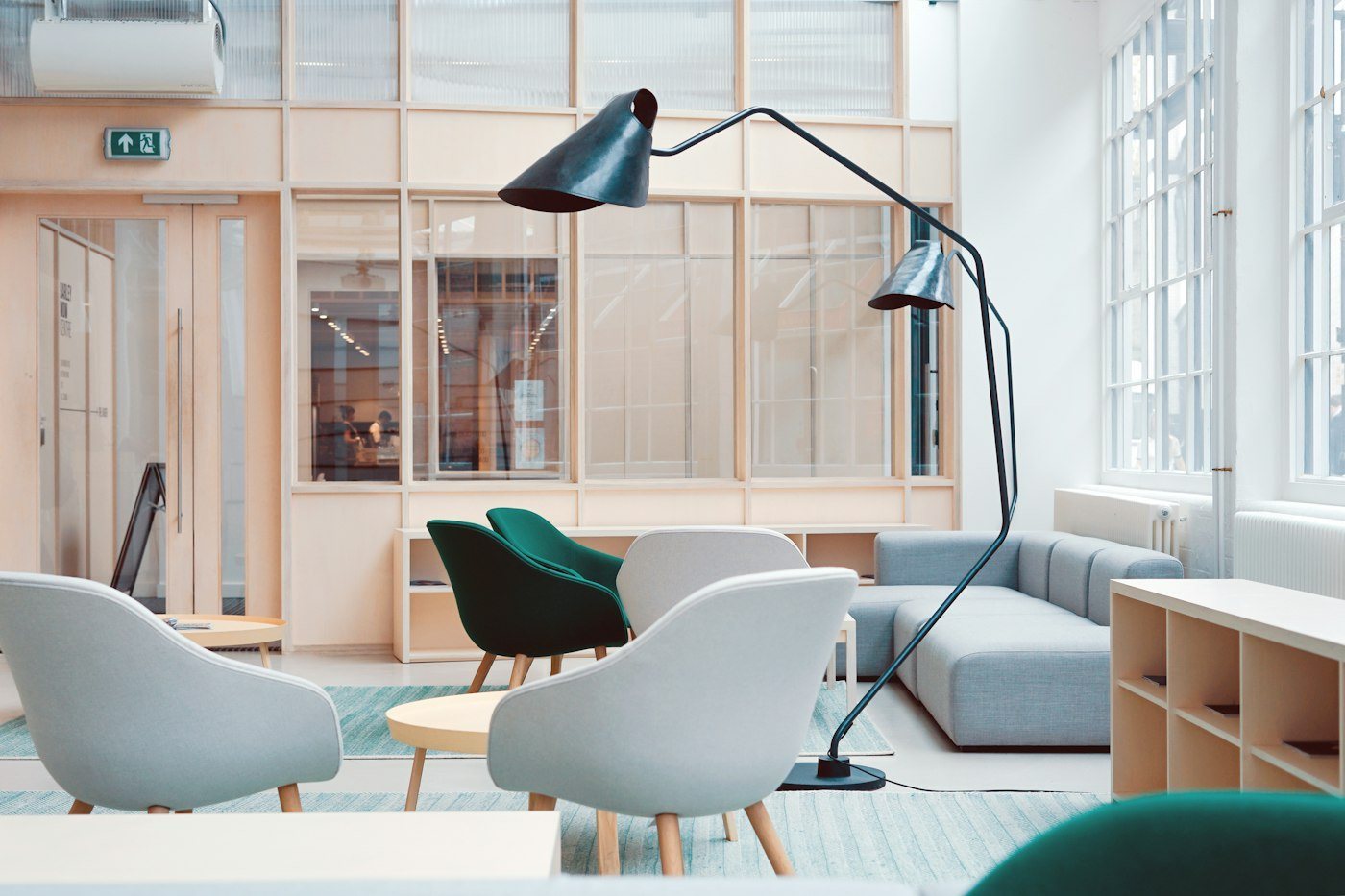

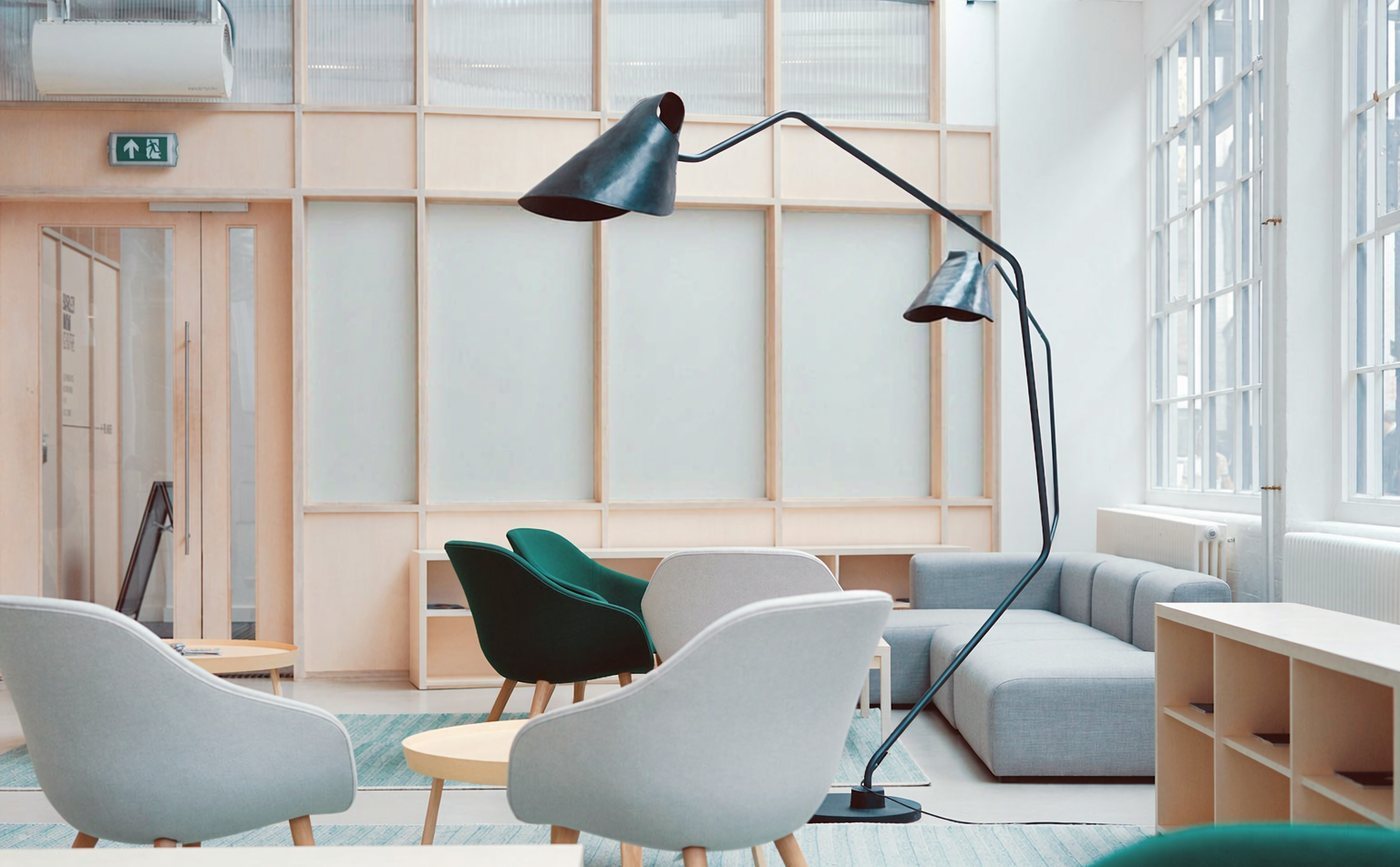

Laminated with our film, switching live
Glass laminated with raw SGV PDLC film, captured switching between clear and opaque.
- Under 0.1 s switching - clear to frosted the instant power changes
- ~5 W per m² - less power than a light bulb, only while clear
- Factory-cut to size - busbar finished and tested, ready to wire
Rolled, protected, export-ready
- Every piece rolled on a core - film never ships flat-folded, so no crease marks
- Busbar taped and sealed - transparent protective tape over the electrode edge, leads fixed away from the film
- Protective interlayer wrap - dust-free film wrapped around the roll before it leaves the clean workshop
- White foam edge protection - the roll is cushioned end to end
- Cartons for sheets, wooden crates for rolls - foam-lined, sealed and batch-numbered for sea or air freight
Ready to specify this product?
Tell us your glass dimensions and application - an engineer replies with pricing within 24 hours.
