PDLC Smart Blinds — Privacy Without the Hardware
PDLC smart blinds recreate zebra stripes, flowing waves, sectional privacy and full frosted modes inside the glass itself — privacy with no fabric, no rollers and no cleaning, switched from a remote.
Pick a preset pattern or zone and the glass redraws itself in under a second: keep chosen areas clear while others turn opaque, or flood the whole pane into a soft frosted blind. It is the look of window dressings with none of the hardware.
ClearWhat PDLC smart blinds are
Smart blinds are our PDLC film with laser-etched zones that switch independently, so the pane can show precise patterns instead of a uniform state. A zebra layout alternates clear and opaque bands; a wave layout flows animation across the glass; sectional mode keeps part of the glass clear while the rest frosts.
Because everything happens inside the glass, there is nothing to fray, nothing to wind up and nothing to dust. The effect is permanent, optically clear when transparent, and switched instantly from a remote, wall switch or smart system.
It suits places where traditional blinds are impractical — glass roofs, oversized facades, wet rooms and high-traffic areas — and adds a branded or decorative layer that ordinary blinds cannot. Patterns are designed at the production stage and can be customised to your space.
Two scenes, three states
Clear glass, a striped blind pattern, or full frosting — all drawn inside one pane, switching at the touch of a button.
ClearCity meeting room
Straight zebra stripes recreate the familiar look of fabric blinds inside the glass itself. Alternating clear and frosted bands let daylight through while still giving a meeting room a measure of separation, with no slats, cords or rollers to dust or jam.
The film is cut into evenly spaced horizontal lines and wired by zone, so you can frost just a few bands or the whole pane from a wall switch, remote or app. It is a favourite for offices that want privacy on demand without covering the view.
ClearSea-view suite
A flowing wave pattern turns a panoramic window into a soft, architectural feature. The animated stripes add movement and elegance to the glass, diffusing strong sunlight while keeping the sea view intact.
Because the pattern lives inside the switchable film, there are no curtains to wash or tracks to maintain. Guests switch between clear, wavy and fully frosted at the touch of a button, making it a signature upgrade for hotels and luxury residences.
Watch the stripes switch
A real looping animation, recorded frame by frame — clear, partial, striped, then fully frosted.
City meeting room
Sea-view suite
How smart blinds work

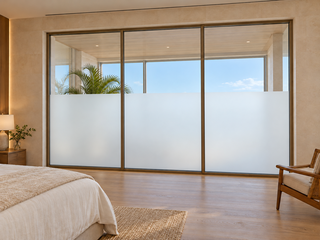

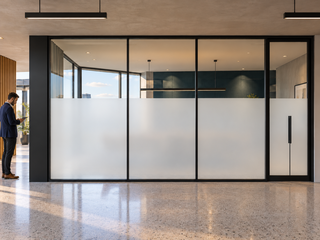

Frost the lower half and keep the view above — perfect for offices and bathrooms that need light but not eyes.
Laser-etched PDLC zones switch on their own. A preset pattern or zone is selected from a remote or smart system, and the glass redraws itself — privacy, branding and light managed in a single pane.
Each zone is a separate switchable area, so combinations are nearly endless: a top band of blinds over a clear lower view, a company stripe across a lobby, or a fully frosted wall at the touch of a button.
Four smart blind modes
Zebra stripes
Alternating clear and opaque bands balance privacy and daylight, and read as a modern blind.
Wave patterns
Flowing animated bands add motion and elegance, or a static wave for a calm interior.
Sectional control
Keep chosen zones clear while others turn opaque — privacy exactly where you need it.
Full opaque mode
Flood the whole pane into a soft frosted blind the instant confidentiality is required.
Technical specifications
| Working voltage | AC 60V / 48V, 50-60Hz |
|---|---|
| Thickness | 0.4 mm adhesive / 0.38 mm laminated |
| Light transmittance (ON) | 85-92% by grade |
| Haze (OFF) | 93-95% opaque frosted |
| View angle | 160° |
| UV blocking | ≥ 99% |
| IR blocking | ≥ 98% |
| Operating temperature | -30°C to 70°C |
| Response time | < 10 ms |
| Power consumption | ~5 W/m² |
| Max width | 1.8 m (custom cut) |
| Warranty / lifespan | 2 years / ≥ 15 years |
Where to use them
Offices & meeting rooms
Draw a blind across a glass wall without losing the open feel.
Storefronts & retail
Brand the glazing with a switchable stripe or pattern.
Hospitality & clubs
Shift the mood from open to intimate with one control.
Healthcare & clinics
Privacy zones appear on demand, no curtains to launder.
Luxury residences
Replace drapery on a glass roof or shower with invisible blinds.
Bathrooms & bedrooms
Frost only the sightline you care about, keep the rest clear.
Frequently asked
Can I choose the pattern?
Is it really maintenance-free?
How is it controlled?
Want blinds with no hardware?
Describe the pattern or zones you need and the glass size — an engineer returns a quote within 24 hours.
