Switchable Privacy Laminated Smart Glass
PDLC film laminated between two tempered glass layers - turns from clear to opaque with a switch, finished with wiring and ready for any glazier to install. Doors, windows, partitions and facade panels.
The honest numbers
| Laminated switchable glass | Typical local option | Direct from Smart Glass VIP |
|---|---|---|
| UV / IR blocking | UV only on many panels | 99% UV and 98% IR |
| Glass options | One thickness | 5-10 mm, ultra-white / tinted |
| Controls | Wall switch only | Remote, WiFi app, dimmer optional |
| Installation | Specialist required | Any glazier can install |
| Wiring | Exposed, improvised | Finished busbar, concealed lead |
| Price level | Local fabricator markup | Factory direct from China |

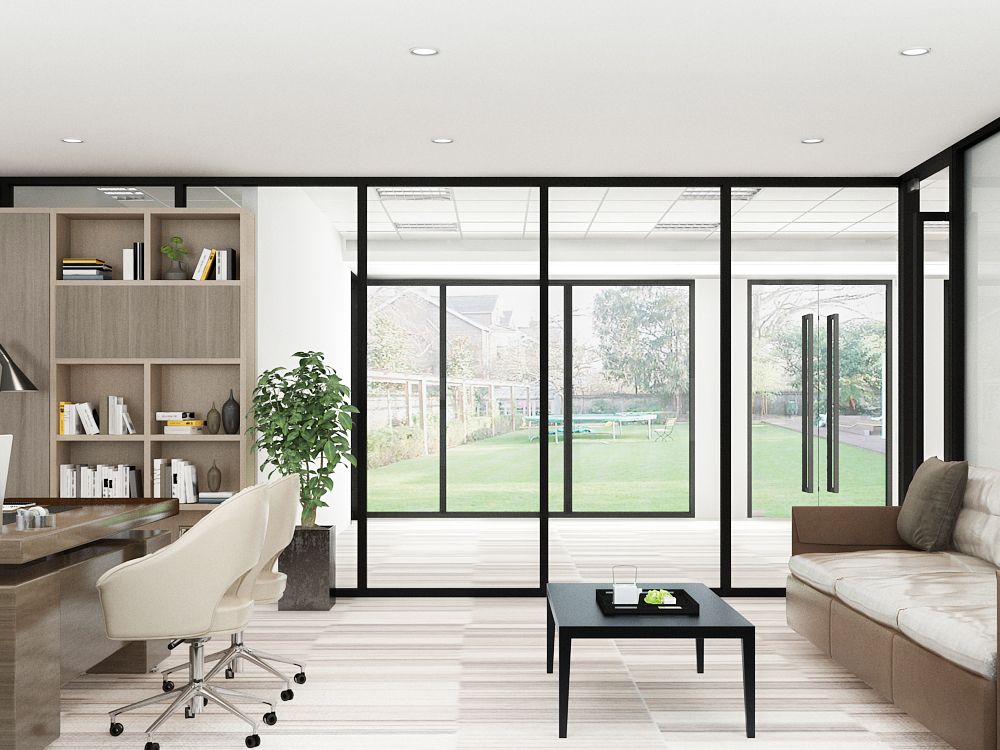

CLEAR · TRANSPARENTA finished panel, not a science project
- Heat insulation - blocks 99% UV and 98% infrared
- Explosion proof - tempered laminated safety glass holds fragments
- Noise reduction - laminated interlayer cuts sound by 20%+ vs ordinary glass
- Smart controls - remote, WiFi, app and dimmer optional
- Easy installation - any glazier can install it, no film work on site
- Glass options - float, tempered, ultra-white, tinted
- Projection ready - use as rear projection screen
Liquid crystals between two glass layers
Powered off, the liquid crystal molecules are in disordered array and the glass is opaque. Powered on, molecules align and the glass turns clear - or dim anywhere in between with a dimmer controller. The PDLC core is our own film, so panel quality is controlled from ITO coating to final wiring.
Technical specifications (SGV switchable smart glass)
| Glass thickness options | 5 / 6 / 8 / 10 mm |
|---|---|
| Glass types | Float, tempered, ultra-white, tinted |
| Universal sizes | 1200 / 1500 / 1800 / 2000 mm |
| Transmittance (ON) | ≥ 80% (grade dependent) |
| Haze (OFF) | ≥ 94% |
| UV / IR blocking | 99% UV / 98% IR |
| View angle | 160° |
| Operating voltage | AC 60V via transformer |
| Power consumption | ~5 W/m² |
| Control options | Switch, remote, WiFi app, dimmer |
| Response time | < 10 ms |
| Warranty | 2 years |
See the glass in action

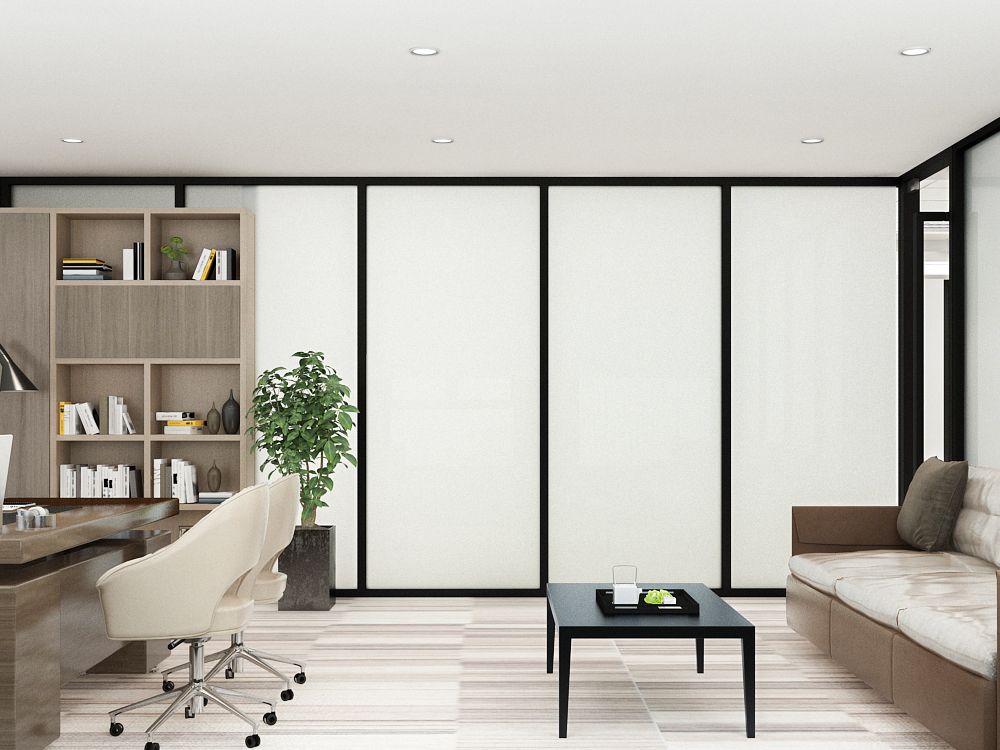

Switch OFF · FrostedSwitch ON · Clear
Meeting room · FrostedWhat is inside every SGV panel
- Sandwich structure - tempered glass + 0.76 mm EVA + 0.44 mm PDLC film + 0.76 mm EVA + tempered glass; total thickness = glass × 2 + 2 mm
- Optical performance - up to 89% light transmission and <3% haze when on; up to 96% haze when off
- Low power - under 4 W/m² while clear; switch life over 2,000,000 cycles, power-on life over 80,000 h
- Quiet and safe - sound insulation up to 38-40 dB, holds fragments on impact, meets GB9656-2003 laminated safety glass standard
- Reference projects - The Globe of Science & Innovation at CERN, The East Wintergarden and The Moorhouse (London), Kentish Town Sports Centre (UK), Howard Johnson Tianxi Plaza (Chongqing), Hue Hotels & Resorts
Full technical indicator tables: download the structure & principle white paper (PDF).
Typical installations
Meeting rooms
Privacy for interviews and presentations, open feel the rest of the day.
Facades & curtain walls
Whole elevations that switch for solar control or privacy.
Hotels
Bedroom-bathroom partitions guests mention in reviews.
The whole facade can switch
A villa glazed with switchable smart glass - the facade turns from fully transparent to private in a second.
- Under 0.1 s switching - clear to frosted the instant power changes
- ~5 W per m² - less power than a light bulb, only while clear
- Factory-cut to size - busbar finished and tested, ready to wire
Questions about this product
Is smart glass heavier than normal glass?
Slightly - it is two tempered panes with the PDLC interlayer. Your glazier should handle it like standard laminated glass of the same thickness.
Can it be double-glazed (IGU)?
Yes, we produce switchable IGU units on request for exterior windows requiring thermal insulation.
What happens on power failure?
The glass goes opaque - the safe, private default state. Reverse-mode film (clear when off) is available for special requirements.
What glass thickness and colors are available?
Panels are built from 5-10 mm tempered glass; clear, grey, bronze and low-iron tinted interlayer combinations are possible. Tell us the application and we spec the build-up.
Can you make shapes, holes and cut-outs?
Yes - round corners, drilled holes for handles and hinges, and custom shapes are all cut before lamination. Send your drawings with the quote request.
How is smart glass shipped overseas?
Panels are crated vertically on A-frames with foam separators. Glass is heavy, so sea freight is usually most economical - we quote EXW, FOB and DDP options.
How long does production take?
Typically 7-15 days after drawing approval, depending on glass sourcing and quantity. Urgent orders - tell us the deadline and we confirm feasibility first.
Ready to specify this product?
Tell us your glass dimensions and application - an engineer replies with pricing within 24 hours.
